HyperLab 2021 product information

HyperLab is a full-fledged gamma spectroscopy software system, used by many research and industrial laboratories worldwide. If you want a well designed, superior quality, reliable, yet visually rich gamma spectrum evaluation, try out our HyperLab 2021 software package. HyperLab's various automatic features will save a great amount of your precious time. See also our online HyperLab 2021 documentation for details.

Features

• superior quality automatic gamma spectrum deconvolution
• processing of Canberra's Dual LFC and Ortec's ZDT-VAR spectra
• visually rich representation of deconvoluted regions, revealing fine details
• full arsenal of manual deconvolution adjustment tools
• SQL database back-end for spectrum and peak list storage
• detector efficiency and system nonlinearity evaluation
• handles most popular spectrum file formats (Canberra's CNF, Ortec's SPC, MCA, Accuspec etc)
• ... and much more!

Benefits

• Much better automatic fit of complicated regions than its competitors: less manual interventions.
• Loss-free counting evaluations: changing count rate is no more a problem.
• What you see is what you get: no more blind deconvolutions.
• Full manual control of fits: perfect fits are just a few clicks away.
• SQL database: forget the long inventory of spectrum and evaluation files.
• Nonlinearity and efficiency correction: exact peak locations and areas for further processing such as isotope identification and activity calculation.

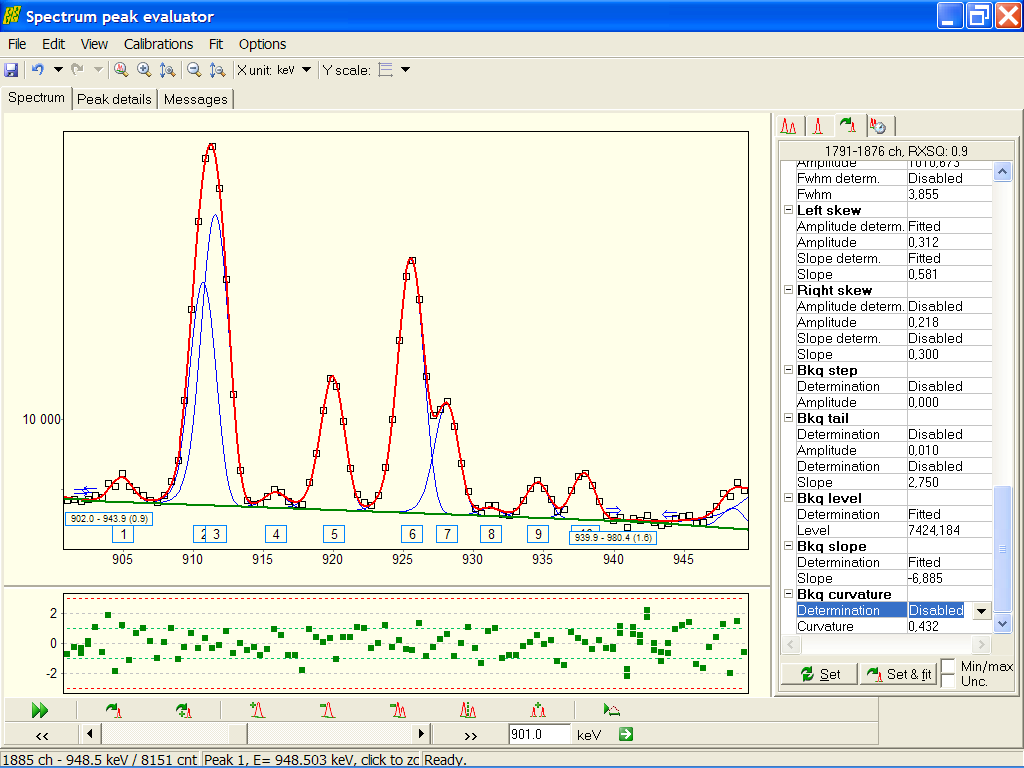

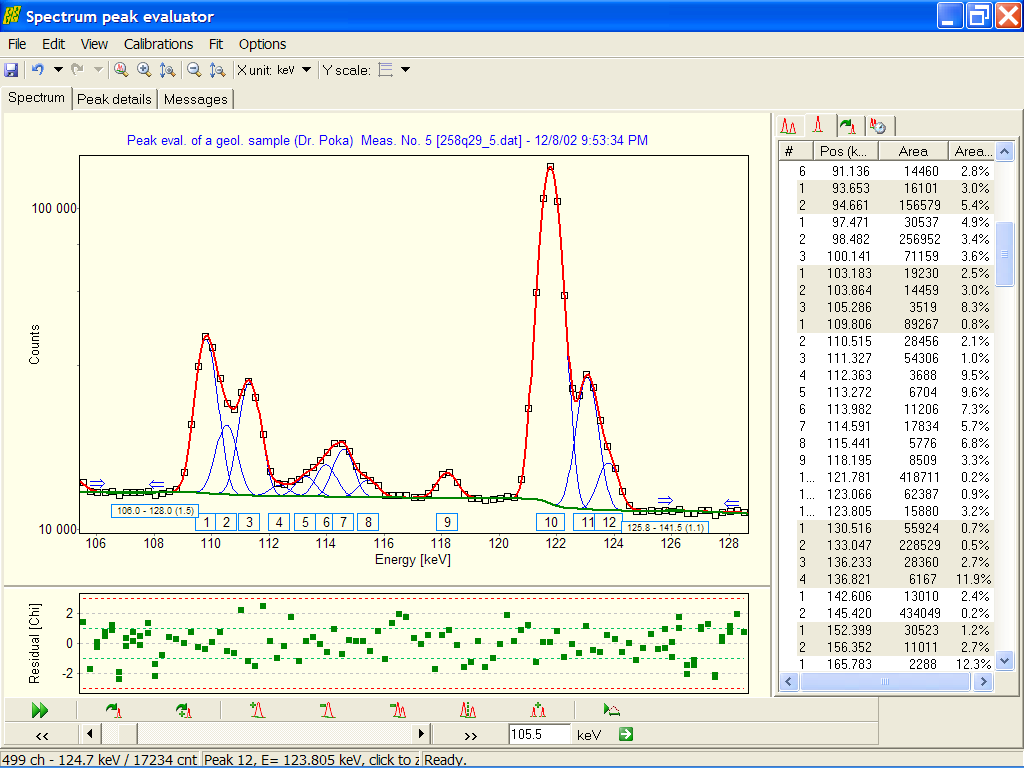

Automatic fitting of extremely complex regions

• Automatically locates peaks, requires only a rough FWHM calibration
• Intelligently determines real peak width, location, amplitude, skew, etc.
• Uses semi-empirical peak and background functions
• Background is made of slope, curve, step, skew parts, able to describe all real cases
• Nonlinearity and efficiency correction: exact peak locations and corrected peak areas

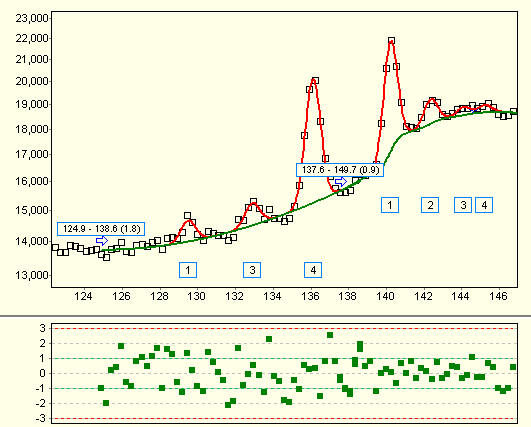

• Region backgrounds are overlapping by default, so more stable fits may be achieved

Quick, visual fit refinement

• Region fit manipulation by the mouse over the visual representation of the region fit
• All parameters of the fit may be adjusted by hand, changes are immediately displayed on the fit chart
• Quick peak addition, removal, as well as region split and merge operations by mouse
• Visual FWHM and Energy calibration with quick point addition and removal
• Residual is always visible and helps the manual intervention greatly

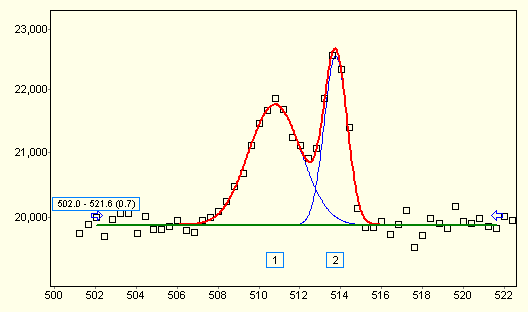

Automatic annihilation peak fit

• HyperLab is able to use a Variable Peak Width method, when all peaks within a region may have significantly different FWHM
• Significant lines may be resolved automatically which are overlapping with the 511keV annihilation peak
• Parameters of the allowed broadening may be adjusted, if necessary

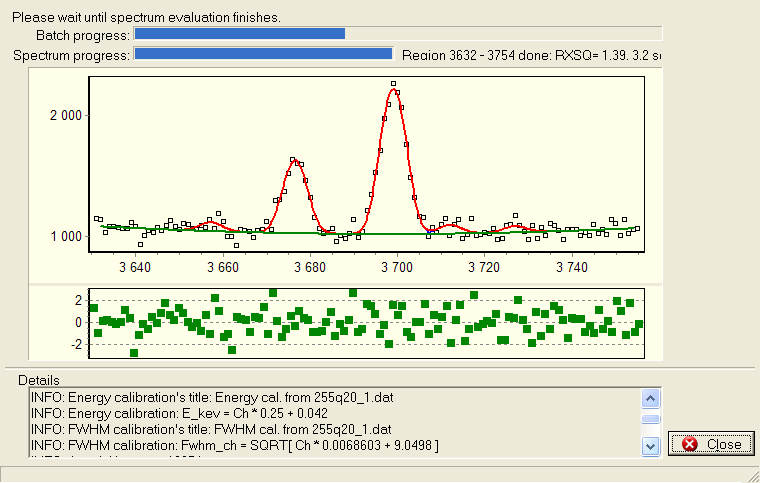

Batch evaluator

• Performs deconvolution of multiple spectra without user intervention
• Stores the deconvolution results into the database, TXT or Sampo-90 files
• Results may be later hand-tuned in the database, with the same set of tools as for individual evaluations
• RTF report files optionally with graphical representation of the fits
• Quick results of well-known spectra within minutes

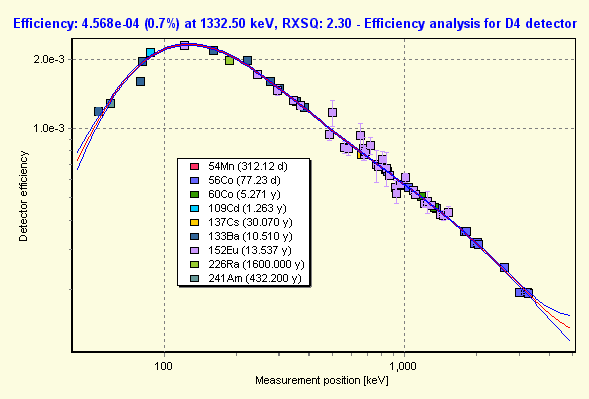

Detector efficiency determination module

• Automatically constructs an absolute or relative full-energy detector efficiency curve
• The curve is fitted with one single polynomial, with a numerically very stable method (orthogonal polynomials)
• Multiple measurements with multiple isotopes may be used, even with home-made sources
• Achievable precision is around 1% - 0.5% when multiple sources are used with activity calibration. Suggested sources: 133-Ba, 152-Eu for 200-1400keV range, and 241-Am, 109-Cd, 57-Co for the 50-200 keV range. For furher improvements, utilizing 75-Se, 110m-Ag and 56-Co sources are also advisable.
• Individual lines may be manually removed if proved to be unappropriate
• The efficiency curve may also be used for generating efficiency-corrected peak reports
• Activity of home-made sources may also be calibrated

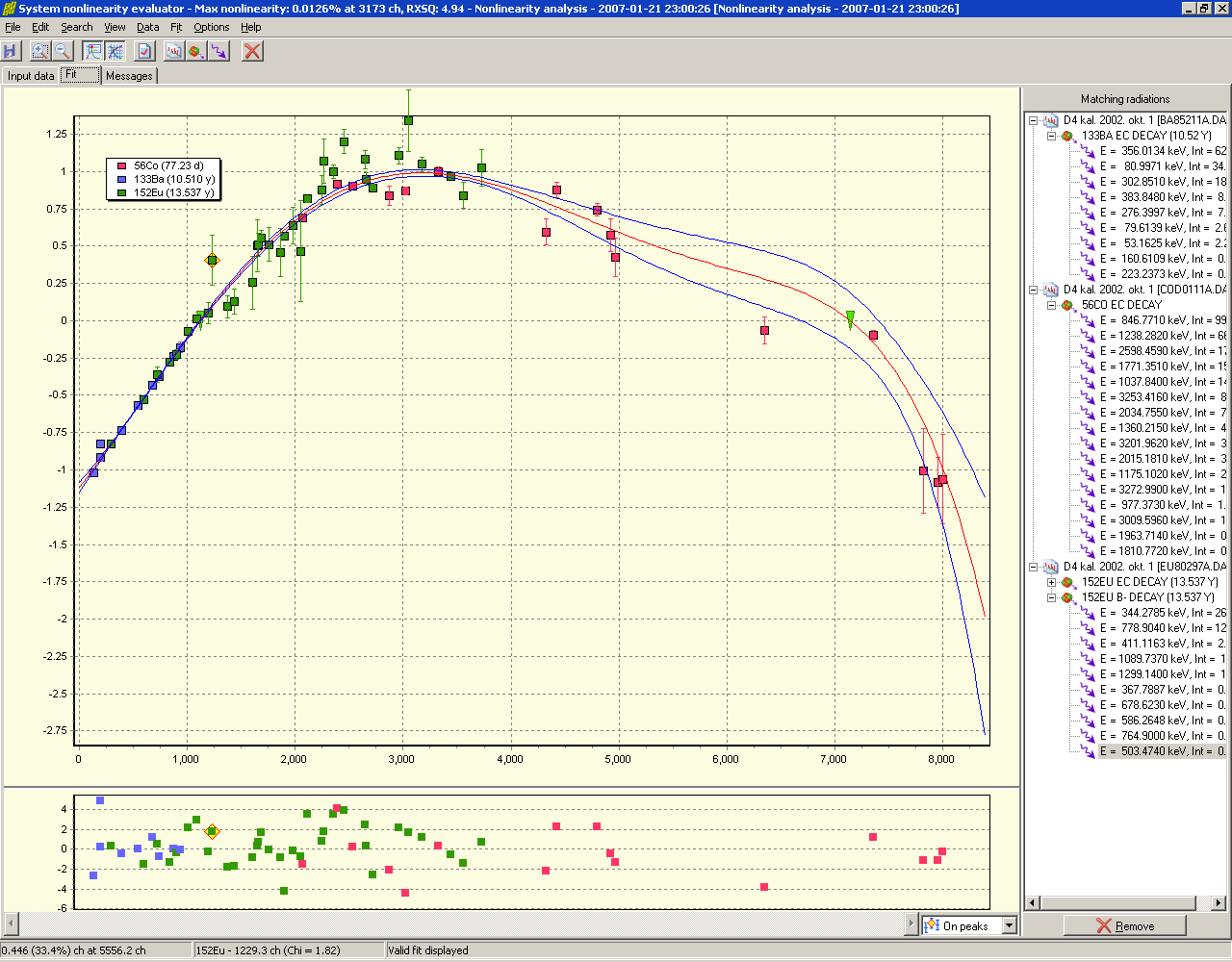

System nonlinearity determination module

• Automatically contructs a nonlinearity curve, which describes the deviation from the ideal channel-energy calibration line
• Multiple measurements may be used, if the identified lines of isotopes are overlapping
• The resulting curve may be used to remove nonlinearity from the energy calibration
• This way the deviation of peak positions from the true value may be reduced to 0.01keV in the whole range

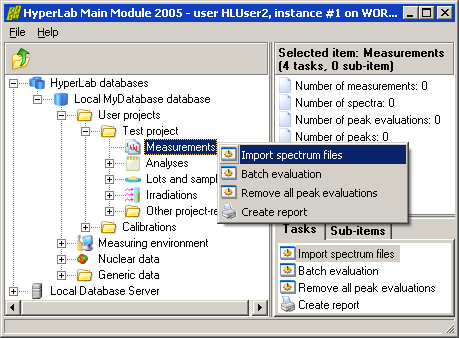

Structured information storage in SQL databases

• Contains specta in compressed form, as well as peaks, nuclear data, and all other information required for routine processing
• Replaces miriads of small spectrum, calibration, DOC, etc. files used by conventional systems
• Provides one independent storage location for all the laboratory's work - a major step towards the paperless bureau
• Enforces strict logical relationships, therefore minimizes chance of improper user input
• Helps Quality Assurance
• Excellent for post-processing, e.g. for Excel, utilizing ODBC connections

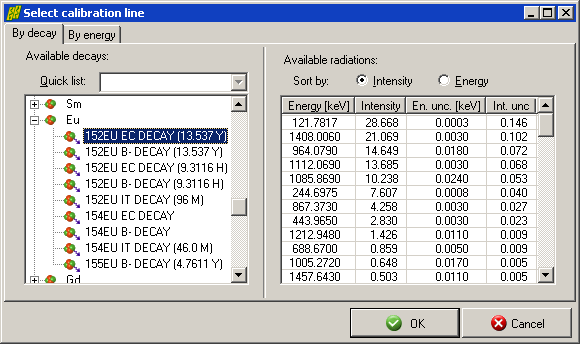

Integrated nuclear library

• Contains several hundreds nuclides, isomer states and decays
• Assembled from ENSDF data files
• Stored in HyperLab's database, also available to post-processing tools
• Individual radiations may be flagged for usage in energy, FWHM calibration, efficiency evaluation etc.
• All values may be edited, thus enabling correction of problematic data

Customer Support

• Free updates for 1 year after the purchase
• Free customer service for 1 year after the purchase via email
• Smaller software modifications upon user's requests
